I'm doing my first big quadcopter using crazyflie to control:

update video
http://v.youku.com/v_show/id_XODM2MTI1Nzc2.html

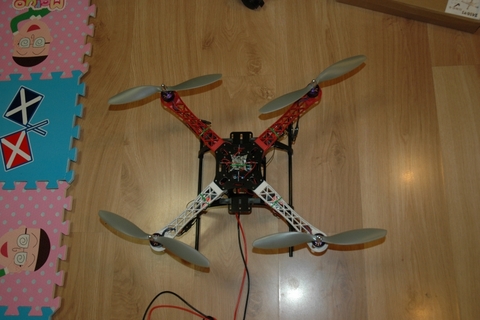

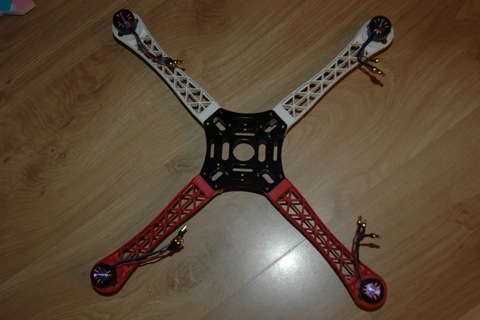

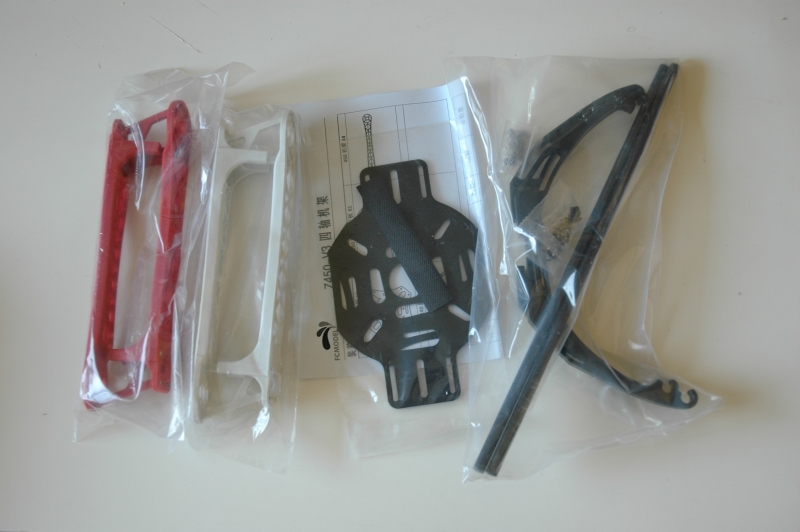

airframe

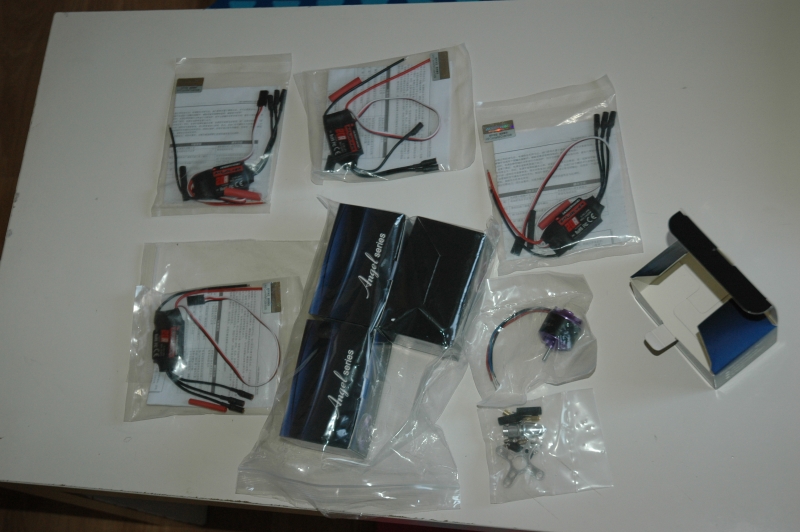

ESC and brush-less motors

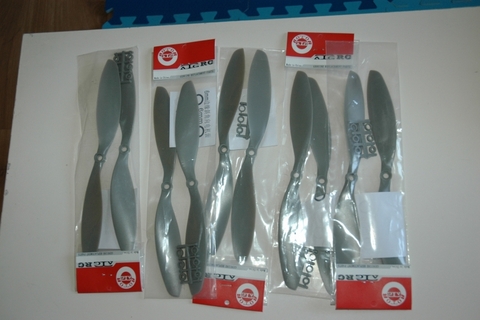

propeller
assembly drawing

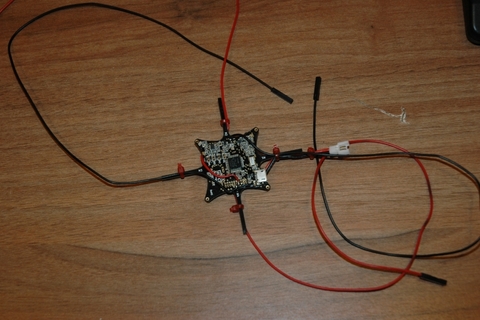

crazyflie for control
Last edited by wwfiney on Thu Nov 27, 2014 3:58 am, edited 2 times in total.
wwfiney
Beginner
Posts: 21
Joined: Sat Nov 30, 2013 1:58 am
Location: Shanghai, China

Re: crazyflie for my bit quadcopter

Post by wwfiney »

assembling

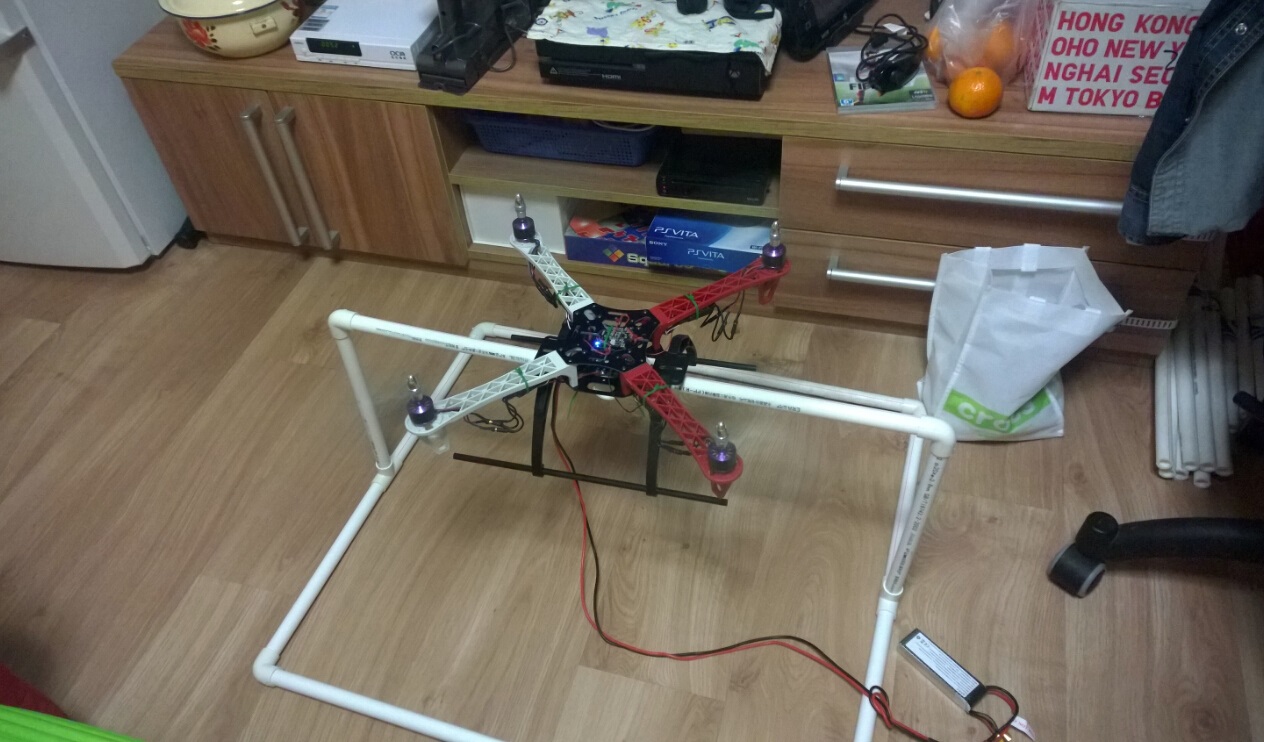

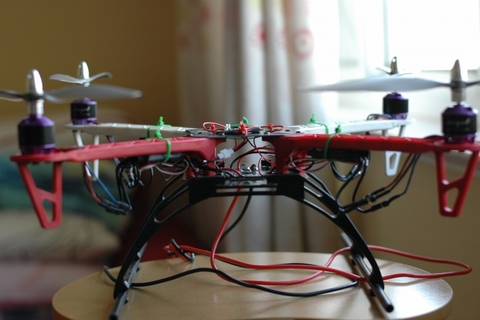

finish

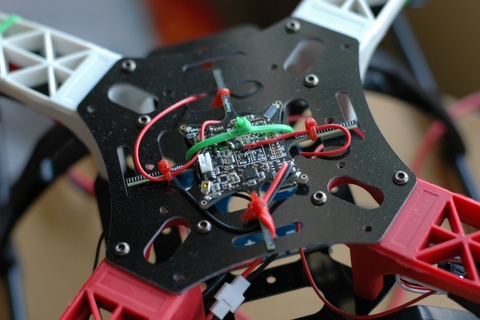

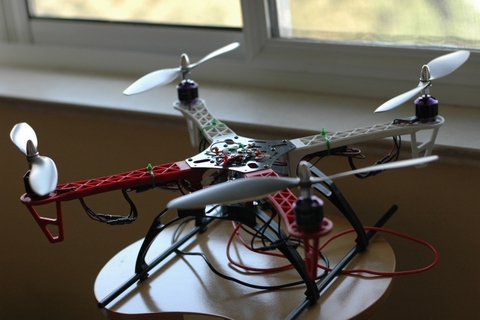

close-up
whoenig
Expert
Posts: 328
Joined: Mon Oct 27, 2014 2:55 am

Re: crazyflie for my big quadcopter

Post by whoenig »

Looks nice! To reduce vibrations you might not want to strip it down directly to the frame, but but some softer foam in between. Keep us posted when it's flying!
wwfiney
Beginner
Posts: 21
Joined: Sat Nov 30, 2013 1:58 am
Location: Shanghai, China

Re: crazyflie for my big quadcopter

Post by wwfiney »

Yes, I planed to use rubber washer between motor and frame.
But the other guys said to me, it's not so necessary to do this for this size quadcopter.
I also believe it's better to have.

But firstly, I need setup the balance testing environment and let it fly. Then I can do other optimizations.
I will keep update.
rebit
Member
Posts: 33
Joined: Tue Nov 18, 2014 8:53 am

Re: crazyflie for my big quadcopter

Post by rebit »

Hello wwfiney ! I will do the same. Pls post your evolution for us ! Sucess in your project.
rebit
Member
Posts: 33
Joined: Tue Nov 18, 2014 8:53 am

Re: crazyflie for my big quadcopter

Post by rebit »

Hi, i have three questions about your setup.

According to this post http://www.bitcraze.se/2014/03/brushles ... crazyflie/

Is not necessary the resistors to reduce the voltage to 2.8v from ESC's ?

And about the brushless driver tag activation on code do you did ?

The ESC's have simonK firmware compatible ?
wwfiney
Beginner
Posts: 21
Joined: Sat Nov 30, 2013 1:58 am
Location: Shanghai, China

Re: crazyflie for my big quadcopter

Post by wwfiney »

rebit wrote:Hi, i have three questions about your setup.

According to this post http://www.bitcraze.se/2014/03/brushles ... crazyflie/

Is not necessary the resistors to reduce the voltage to 2.8v from ESC's ?

And about the brushless driver tag activation on code do you did ?

The ESC's have simonK firmware compatible ?
1 I didn't connect ESC's 5V to crazyflie power input. I connect it to USB input, USB is 5V, so it's OK. (tradeoff is you cannot get correct battery power status)
2 I didn't use the the code of crazyflie-firmware for brushless motor, I write it myself. You can reference the code https://github.com/wwfiney/crazyflie-fi ... tree/snake, my project is the "snake" branch
wwfiney
Beginner
Posts: 21
Joined: Sat Nov 30, 2013 1:58 am
Location: Shanghai, China

Re: crazyflie for my big quadcopter

Post by wwfiney »

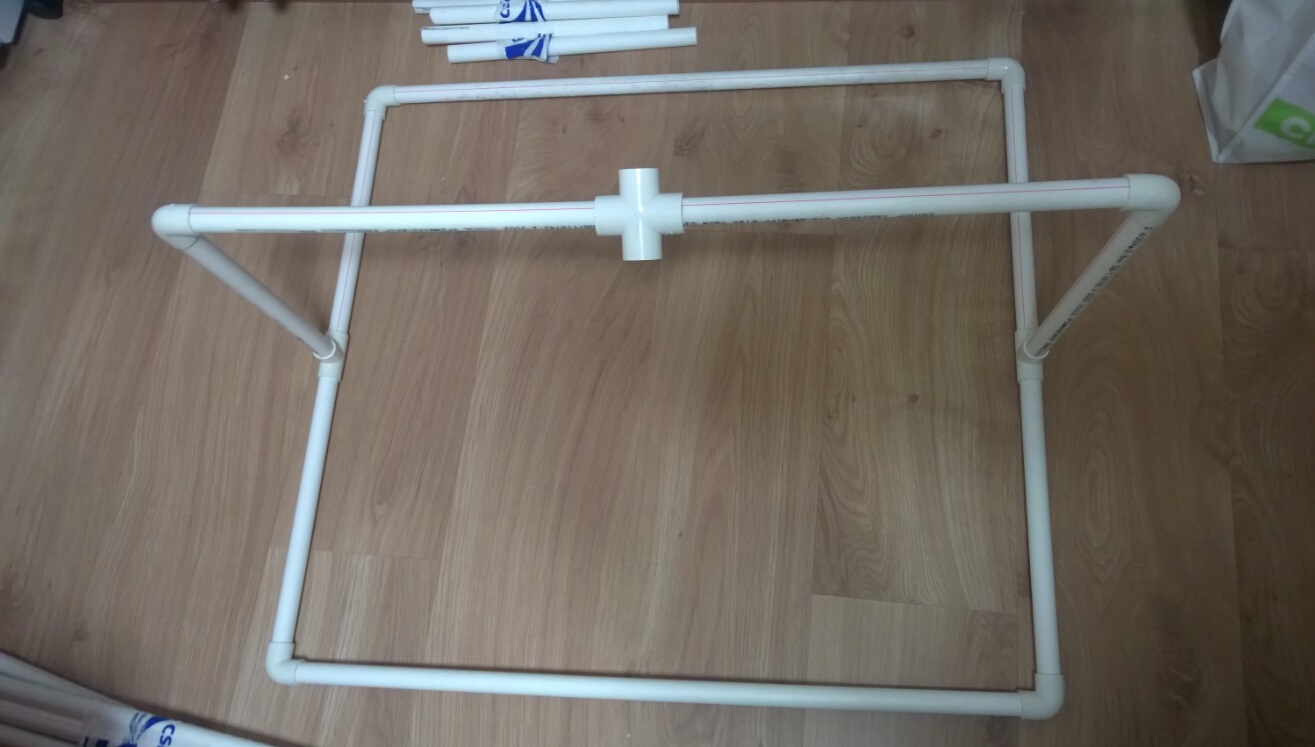

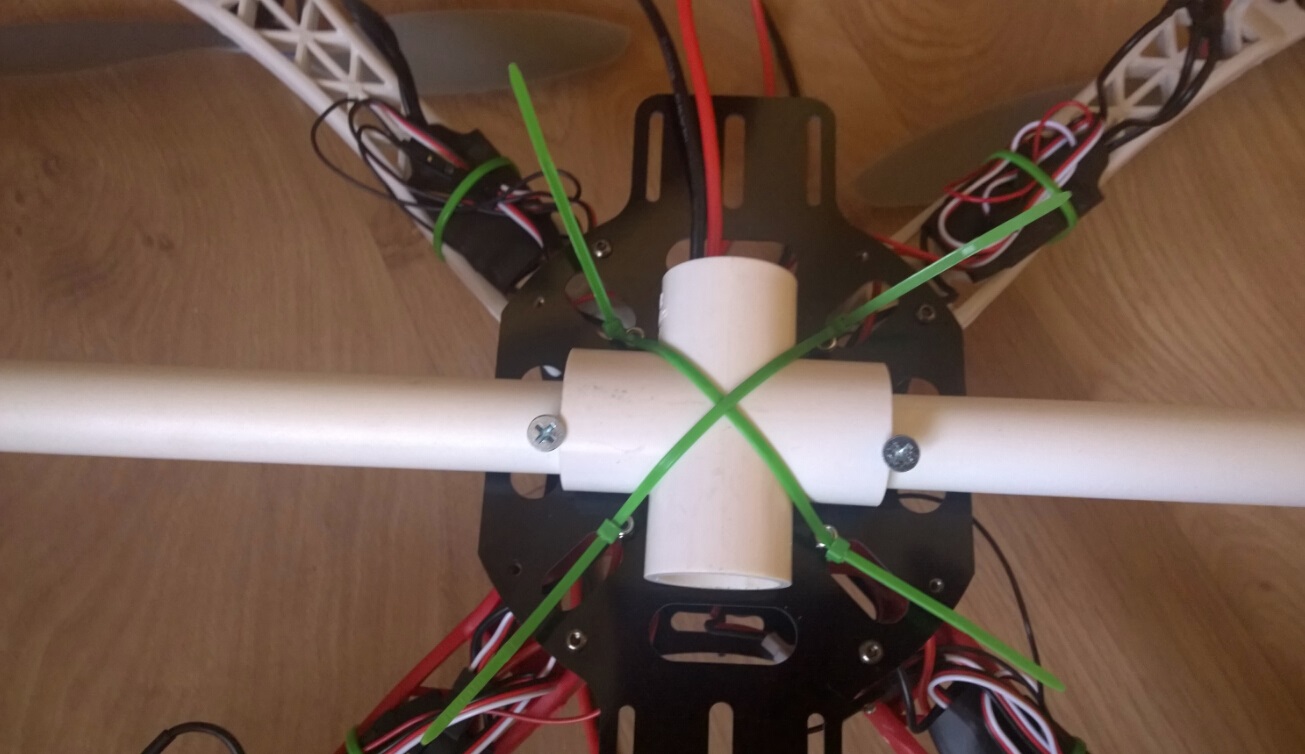

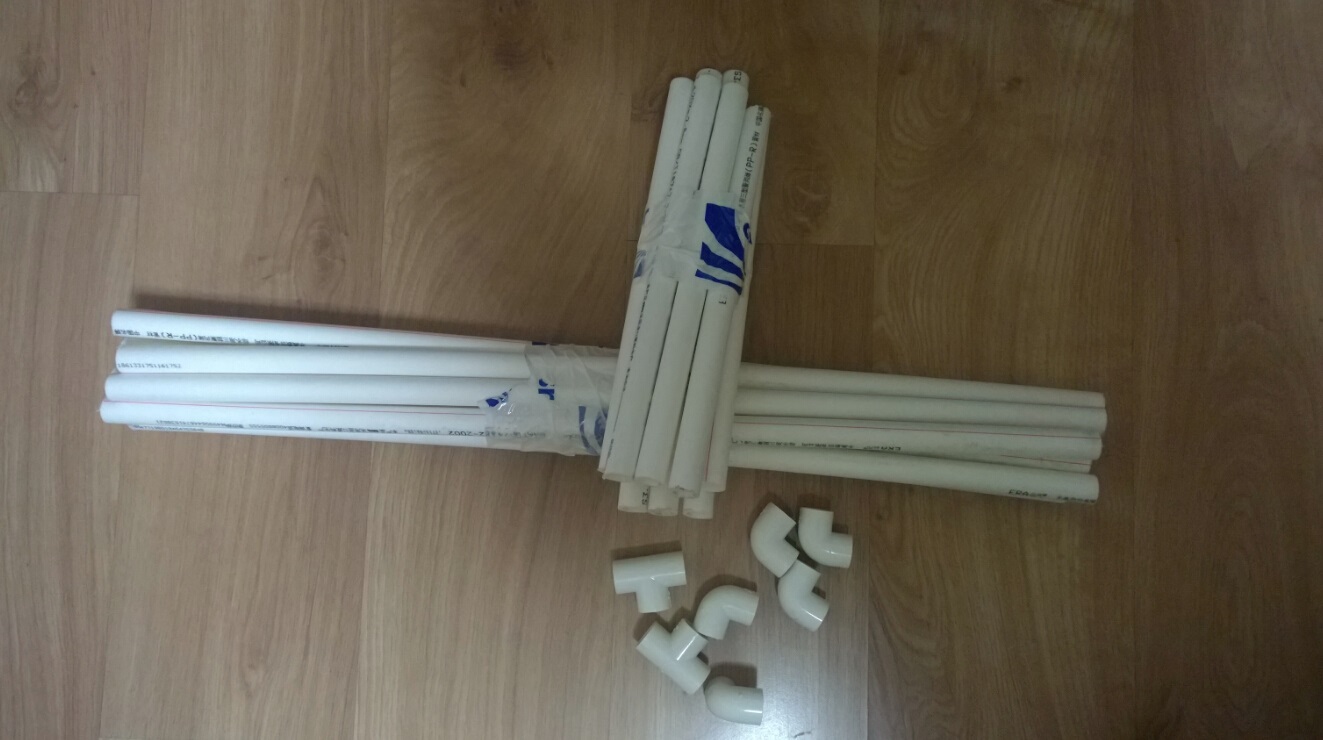

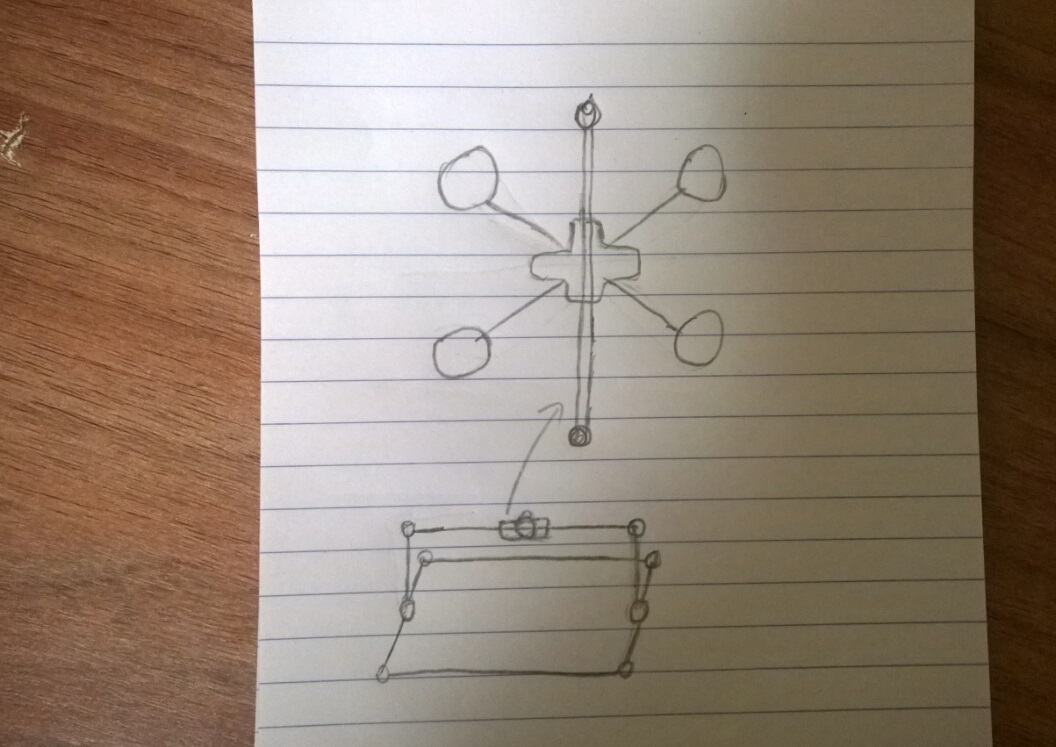

update balance test bar
wwfiney
Beginner
Posts: 21
Joined: Sat Nov 30, 2013 1:58 am
Location: Shanghai, China

Re: crazyflie for my big quadcopter

Post by wwfiney »

rebit
Member
Posts: 33
Joined: Tue Nov 18, 2014 8:53 am

Re: crazyflie for my big quadcopter

Post by rebit »

wwfiney wrote:
rebit wrote:Hi, i have three questions about your setup.

According to this post http://www.bitcraze.se/2014/03/brushles ... crazyflie/

Is not necessary the resistors to reduce the voltage to 2.8v from ESC's ?

And about the brushless driver tag activation on code do you did ?

The ESC's have simonK firmware compatible ?
1 I didn't connect ESC's 5V to crazyflie power input. I connect it to USB input, USB is 5V, so it's OK. (tradeoff is you cannot get correct battery power status)
2 I didn't use the the code of crazyflie-firmware for brushless motor, I write it myself. You can reference the code https://github.com/wwfiney/crazyflie-fi ... tree/snake, my project is the "snake" branch
Thanks for reply ! Great evolution, i will see your video now !
